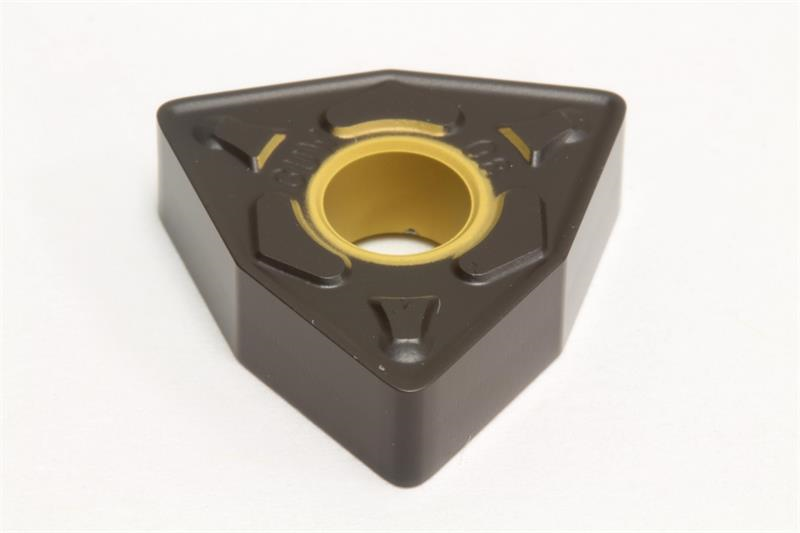

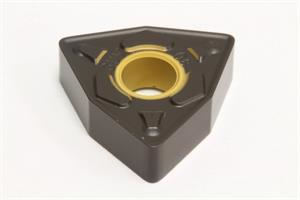

WNMG432 EGUW AC405K Grade, Proprietary Coated, Carbide Turning Insert

  • Item Code: WNMG432EGUW AC405K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC7405K
Number of Edges 3
Brand Sumitomo
Shape Trigon
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Insert Style WNMG
Thickness 0.1875 Inch
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Chipbreaker Type EGUW
Corner Radius 0.0313 Inch
Included Angle 80
Product Name Turning Insert
Rake Angle 0 Degree
Coating/Finish Coated
Material Solid Carbide
