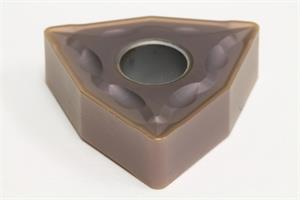

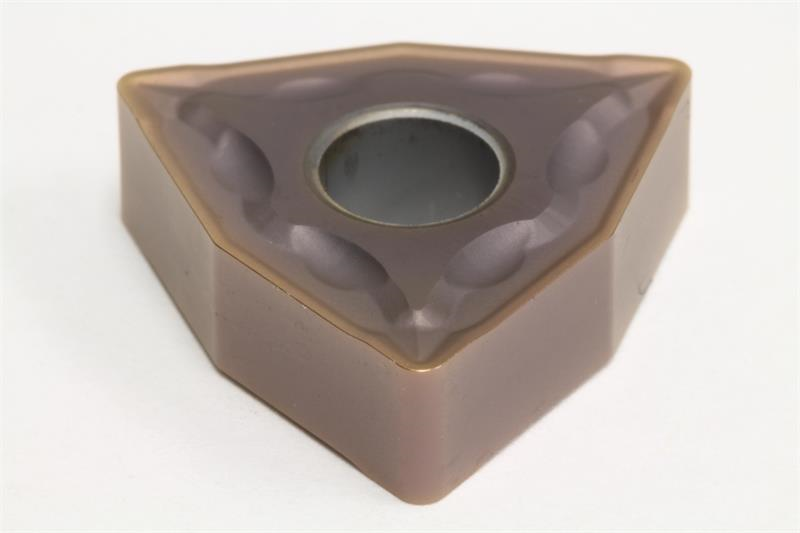

WNMG432 EMU AC520U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: WNMG432EMU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EMU
Number of Edges 3
Product Name Turning Insert
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Included Angle 80
Insert Style WNMG
Insert Type Negative
Shape Trigon
Brand Sumitomo
Inscribed Circle 0.5000 Inch
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Rake Angle 4 Degree
Relief Angle 0 Degree
Corner Radius 0.0313 Inch
Grade AC520U
Material Solid Carbide
