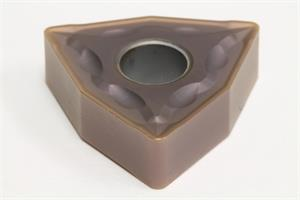

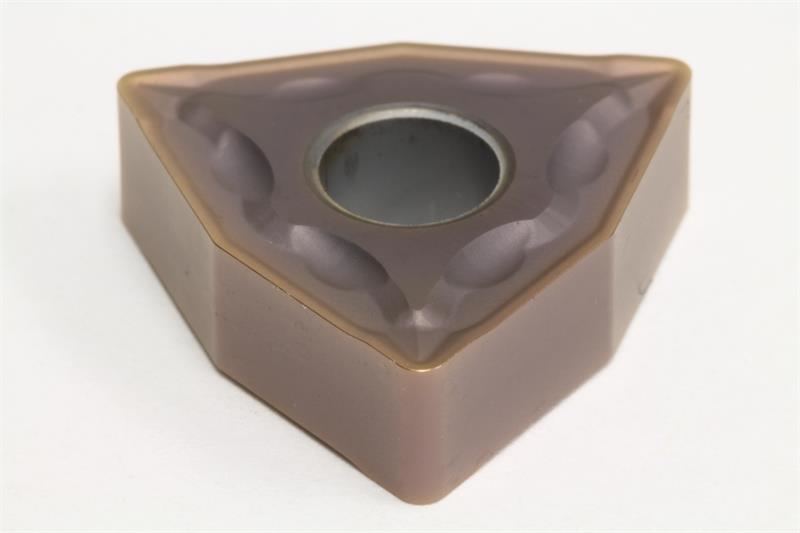

WNMG432 EMU AC530U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: WNMG432EMU AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EMU
Included Angle 80
Number of Edges 3
Product Name Turning Insert
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Inscribed Circle 0.5000 Inch
Insert Style WNMG
Insert Type Negative
Corner Radius 0.0313 Inch
Material Solid Carbide
Brand Sumitomo
Shape Trigon
Grade AC530U
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Rake Angle 4 Degree
Relief Angle 0 Degree
