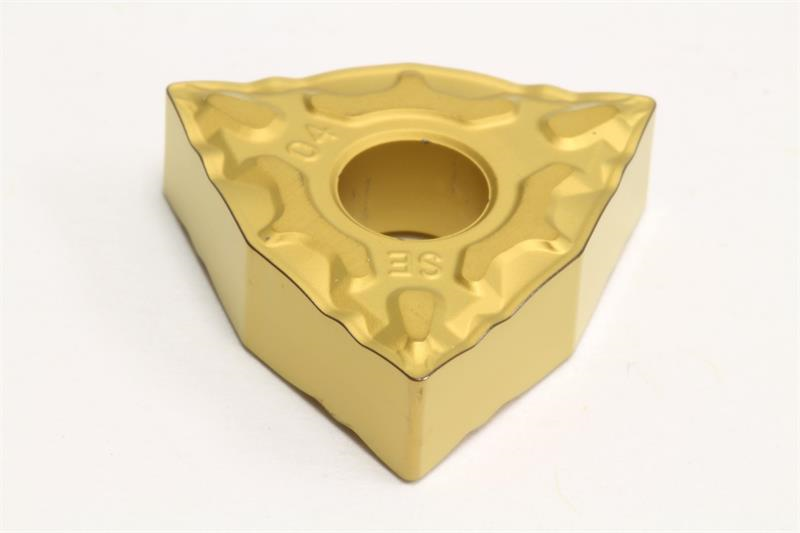

WNMG432 ESE AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG432ESE AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ESE
Number of Edges 3
Coating/Finish CVD
Brand Sumitomo
Rake Angle 13 Degree
Shape Trigon
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0313 Inch
Inscribed Circle 0.5000 Inch
Insert Style WNMG
Thickness 0.1875 Inch
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Grade AC820P
Included Angle 80
Product Name Turning Insert
Material Solid Carbide
