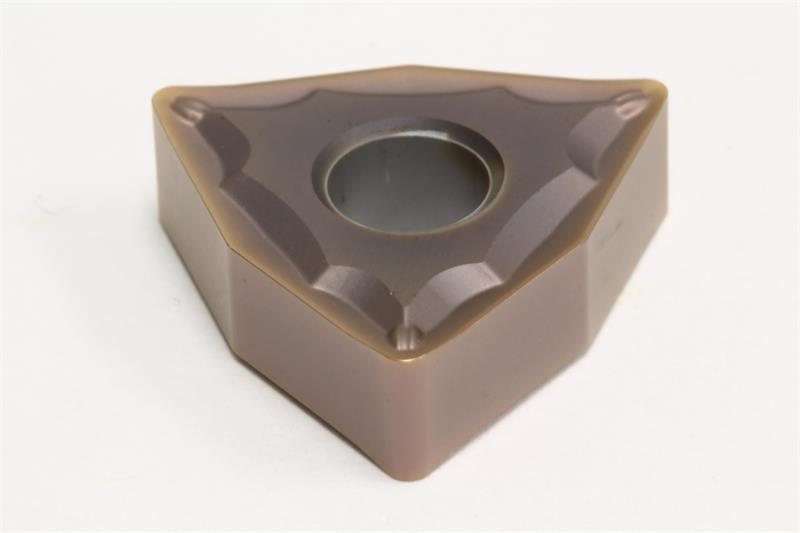

WNMG432 ESU AC510U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: WNMG432ESU AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Number of Edges 3
Product Name Turning Insert
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Inscribed Circle 0.5000 Inch
Insert Style WNMG
Insert Type Negative
Brand Sumitomo
Chipbreaker Type ESU
Rake Angle 13 Degree
Shape Trigon
Corner Radius 0.0313 Inch
Material Solid Carbide
Grade AC510U
Included Angle 80
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
