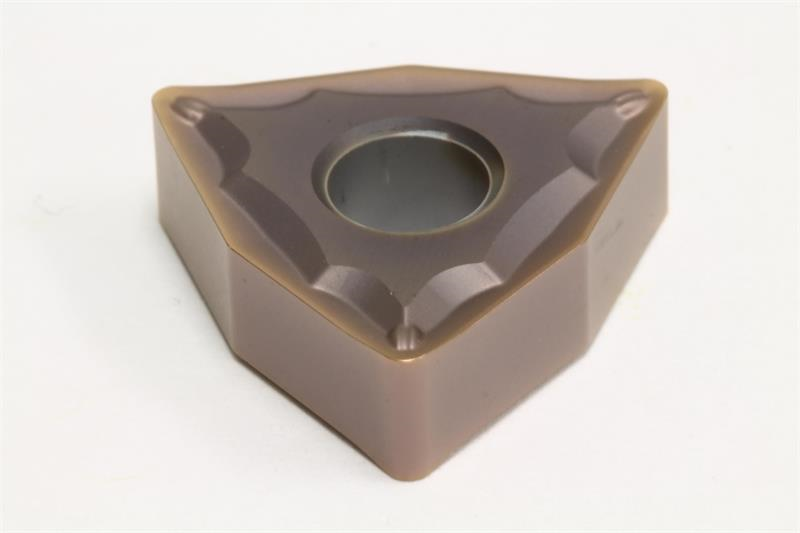

WNMG432 ESU AC520U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: WNMG432ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ESU
Insert Type Negative
Inscribed Circle 0.5000 Inch
Grade AC520U
Product Name Turning Insert
Thickness 0.1875 Inch
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Insert Size 432
Shape Trigon
Corner Radius 0.0313 Inch
Included Angle 80
Material Solid Carbide
Number of Edges 3
Rake Angle 13 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Insert Style WNMG
