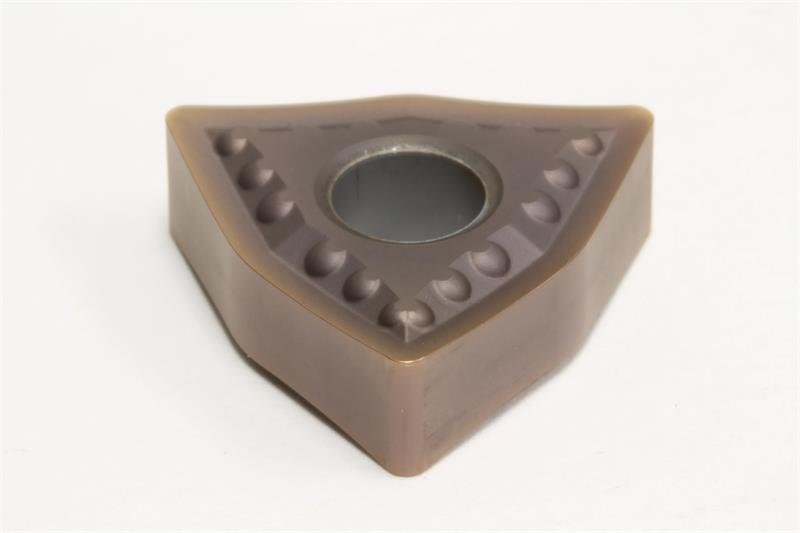

WNMG432 EUP AC520U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: WNMG432EUP AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0313 Inch
Product Name Turning Insert
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Included Angle 80
Inscribed Circle 0.5000 Inch
Insert Style WNMG
Brand Sumitomo
Chipbreaker Type EUP
Rake Angle 10 Degree
Shape Trigon
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Number of Edges 3
Grade AC520U
Material Solid Carbide
