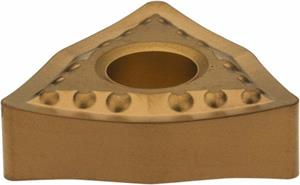

WNMG432 EUP AC830P Grade, Carbide Turning Insert

  • Item Code: WNMG432EUP AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Relief Angle 0 Degree
Shape Trigon
Brand Sumitomo
Chipbreaker Type EUP
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Included Angle 80
Material Solid Carbide
Number of Edges 3
Rake Angle 10 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Insert Style WNMG
Grade AC830P
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
Insert Type Negative
Product Name Turning Insert
Corner Radius 0.0313 Inch
