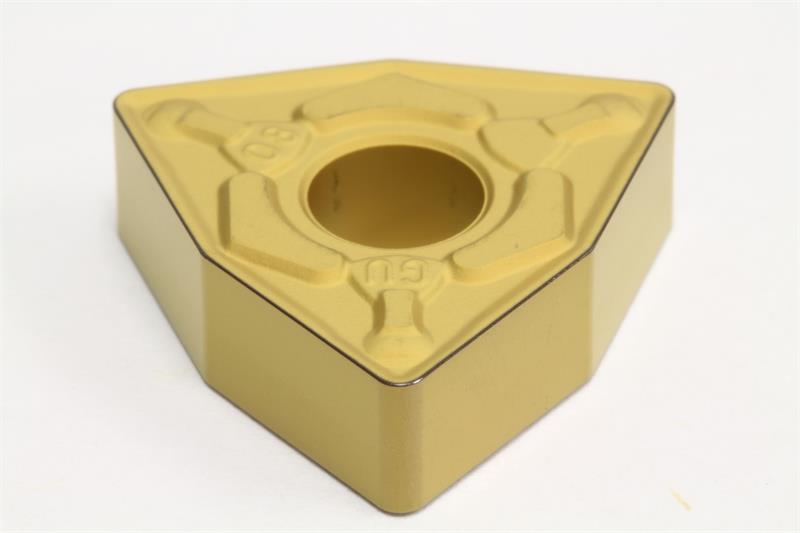

WNMG433 EGU AC810P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG433EGU AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Insert Style WNMG
Insert Type Negative
Coating/Finish CVD
Insert Size 433
Material Solid Carbide
Brand Sumitomo
Corner Radius 0.0469 Inch
Grade AC810P
Product Name Turning Insert
Shape Trigon
Chipbreaker Type EGU
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Included Angle 80
Number of Edges 3
Rake Angle 7 Degree
Thickness 0.1875 Inch
