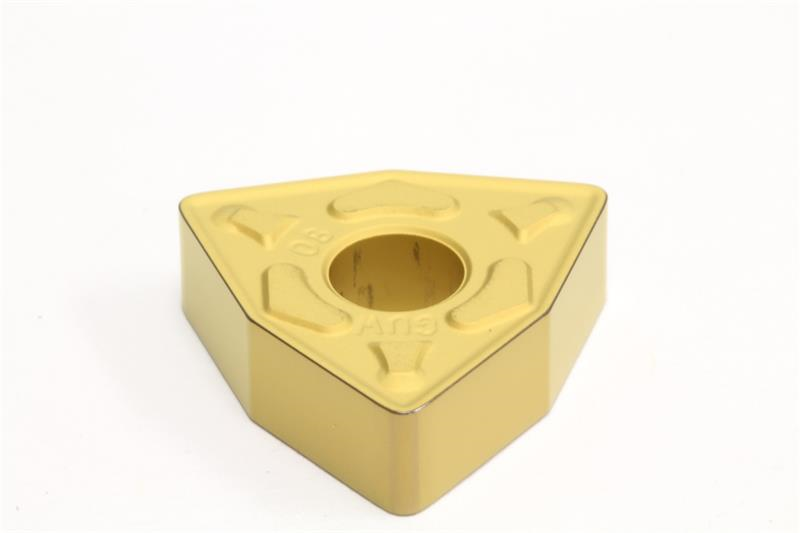

WNMG433 EGUW AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG433EGUW AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 80
Grade AC820P
Inscribed Circle 0.5000 Inch
Insert Type Negative
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type EGUW
Coating/Finish CVD
Insert Style WNMG
Thickness 0.1875 Inch
Brand Sumitomo
Product Name Turning Insert
Rake Angle 0 Degree
Shape Trigon
Mounting Hole Diameter 0.2031 Inch
Number of Edges 3
Relief Angle 0 Degree
Corner Radius 0.0469 Inch
Insert Size 433
Material Solid Carbide
