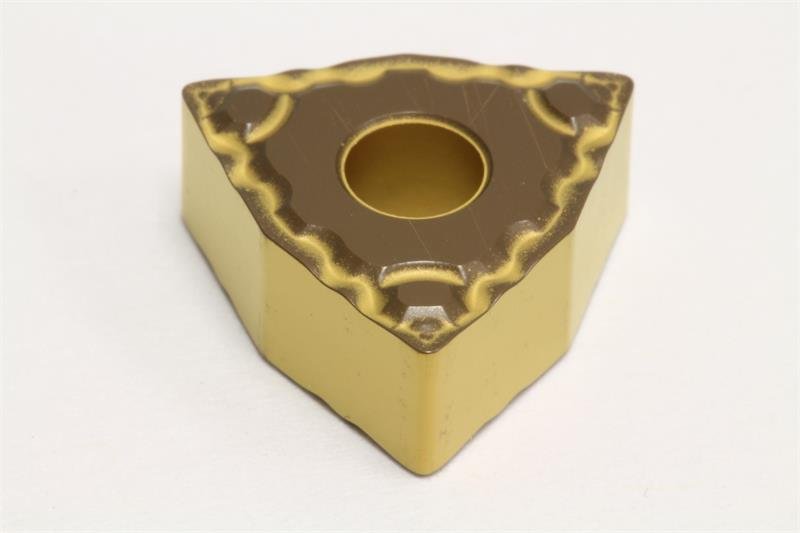

WNMG433 ELUW AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: WNMG433ELUW AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Coating/Finish Coated
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Shape Trigon
Thickness 0.1875 Inch
Rake Angle 10 Degree
Chipbreaker Type ELUW
Grade AC700G
Insert Size 433
Material Solid Carbide
Included Angle 80
Inscribed Circle 0.5000 Inch
Number of Edges 3
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0469 Inch
Insert Style WNMG
