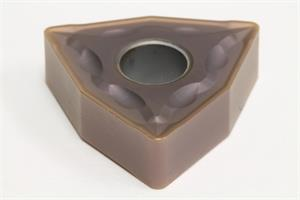

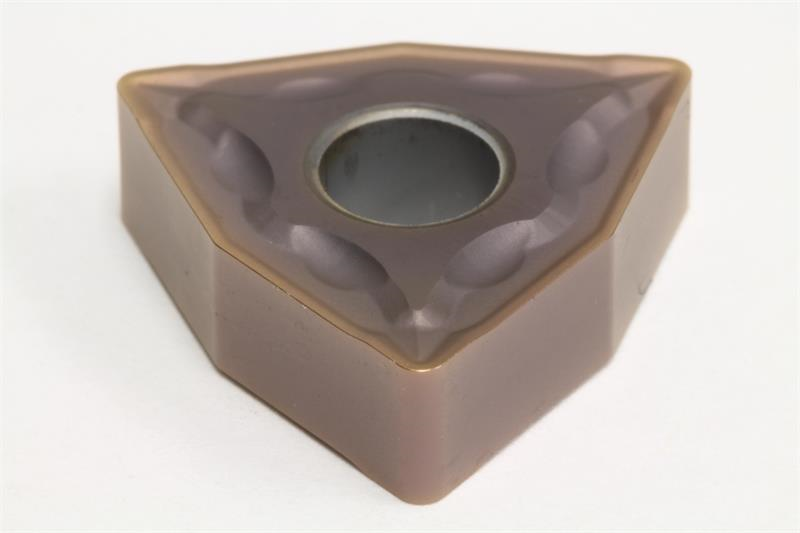

WNMG433 EMU AC530U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: WNMG433EMU AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EMU
Product Name Turning Insert
Thickness 0.1875 Inch
Included Angle 80
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Insert Size 433
Insert Type Negative
Material Solid Carbide
Brand Sumitomo
Corner Radius 0.0469 Inch
Shape Trigon
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Grade AC530U
Insert Style WNMG
Rake Angle 4 Degree
Number of Edges 3
Inscribed Circle 0.5000 Inch
