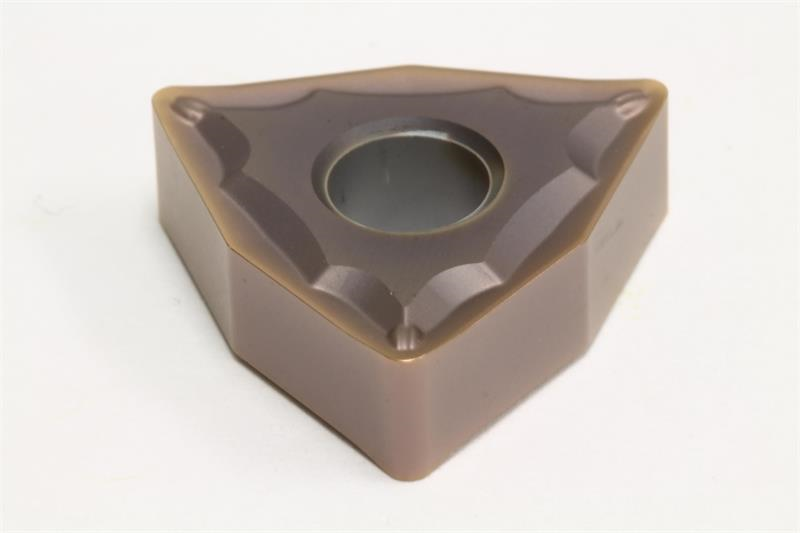

WNMG433 ESU AC520U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: WNMG433ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0469 Inch
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Insert Size 433
Material Solid Carbide
Number of Edges 3
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Grade AC520U
Included Angle 80
Insert Style WNMG
Brand Sumitomo
Chipbreaker Type ESU
Product Name Turning Insert
Shape Trigon
Inscribed Circle 0.5000 Inch
Insert Type Negative
Rake Angle 13 Degree
Thickness 0.1875 Inch
