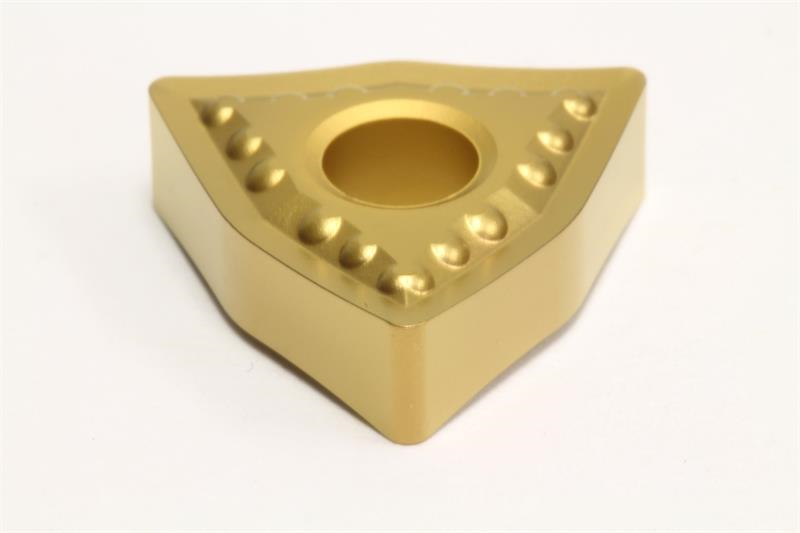

WNMG433 EUP AC830P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG433EUP AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 433
Included Angle 80
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Coating/Finish CVD
Material Solid Carbide
Rake Angle 10 Degree
Brand Sumitomo
Chipbreaker Type EUP
Corner Radius 0.0469 Inch
Product Name Turning Insert
Shape Trigon
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style WNMG
Inscribed Circle 0.5000 Inch
Insert Type Negative
Grade AC830P
Number of Edges 3
Thickness 0.1875 Inch
