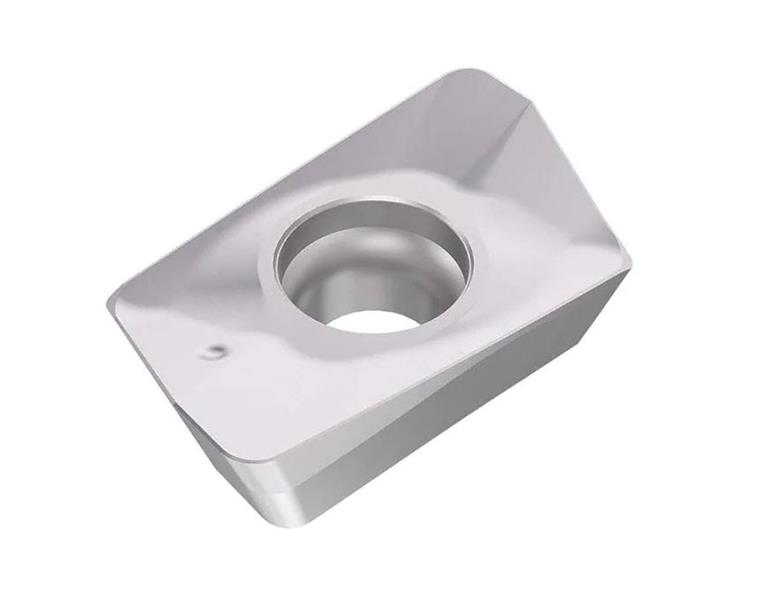

XOMX180612TR-M14 Grade MP2501 Turbo 18 Cermet/Carbide Insert
- Item Code: XOMX180612TR-M14 MP2501
- Brand: Seco
- Unit Size: 1
Description
16.5mm Long x 6.4mm Thick x 11.2mm Wide
Tech Specs
Back To Top| Wiper Edge Length | 0.094" |
|---|---|
| Cutting Geometry Type | M14 |
| Insert Rake Angle | 10° |
| Grade | MP2501 |
| Corner Radius | 0.047" |
| Insert Thickness | 0.252" |
| Coating/Finish | TiCN/Al2O3 |
| Insert Hand | Right |
| Insert Seat Size Code | 18 |
| Insert Width | 0.441" |
| Brand | Seco |
| Insert Size and Shape | XOMX1806 |
| Material | Solid Carbide |
| Clearance Angle Major | 15° |
| Cutting Edge Count | 2 |
| Cutting Edge Effective Length | 0.669" |
