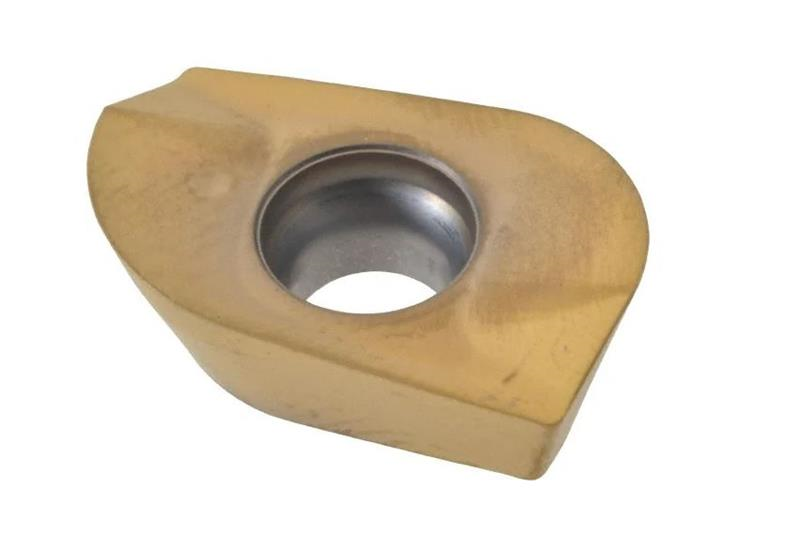

XOMX180663R-M10 Grade F40M Carbide Milling Insert
- Item Code: XOMX180663R-M10 F40M
- Brand: Seco
- Unit Size: 1
Description
0.689" Long x 1/4" Thick x 0.441" Wide
Tech Specs
Back To Top| Cutting Edge Count | 2 |
|---|---|
| Cutting Geometry Type | M10 |
| Grade | F40M |
| Cutting Edge Effective Length | 0.669" |
| Insert Thickness | 0.250" |
| Coating/Finish | TiAlN/TiN |
| Brand | Seco |
| Corner Radius | 0.248" |
| Wiper Edge Length | 0.012" |
| Insert Hand | Right |
| Insert Size and Shape | XOMX1806 |
| Insert Rake Angle | 19° |
| Insert Width | 0.441" |
| Material | Solid Carbide |
| Grade Type | Carbide PVD |
| Insert Seat Size Code | 18 |
| Product Type | Milling |
| Clearance Angle Major | 15° |
