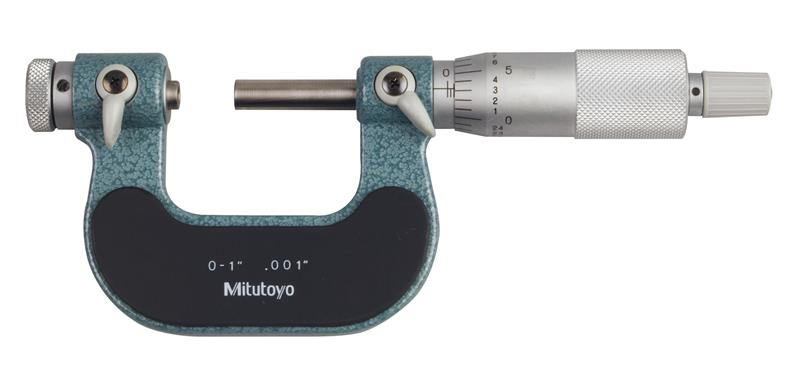

0-1 Inch Measuring Range, 0.001 Graduation, Ratchet Thimble, High Speed Steel Face, Interchangeable Anvil Thread Micrometer

  • Item Code: 126-137
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Has optional 60 and 55 degree V-anvil and conical spindle made of high-grade steel, hardened and precision ground.
    • Supplied in a fitted plastic case.
    • With Ratchet Stop for constant measuring force.

Tech Specs

Back To Top
Primary (Outside Diameter) Contact Point Material Hardened Steel
Range 0 - 1 In
Accuracy ±.0002 In
Case Material Plastic Case
Primary Measuring Range Upper - Inch 1 In
Spindle Face Variable
Individual or Set Individual
Resolution or Graduation .001 In
Mechanical or Digital Mechanical
Thimble Diameter Measurement 18mm
Case Part Number 453217
Finish Enamel
Brand Mitutoyo
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 0 In
Spindle Lock Y
