64-48 Thread Anvil
- Item Code: 126-801
- Brand: Mitutoyo
- Unit Size: 1
Description

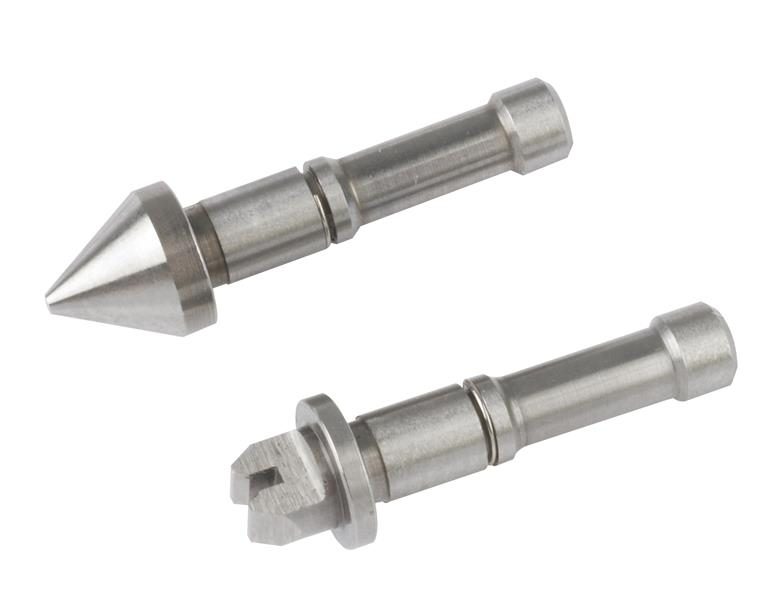

Screw Thread Micrometer Anvil/Spindle, V-Anvil And Conical Spindle, 64-48TPI/0.4-0.5mm
Features
Back To Top- The optional anvils can be used for both metric and unified external threads.
Tech Specs
Back To Top| Screw Size - Metric | 0.4 - 0.5mm |
|---|---|
| Screw Size - TPI | 64 - 48TPI |
| Primary (Outside Diameter) Contact Point Material | Hardened Steel |
| Individual or Set | Individual |
| Brand | Mitutoyo |
| Thimble Diameter Measurement | 18mm |
| Material | Steel |
