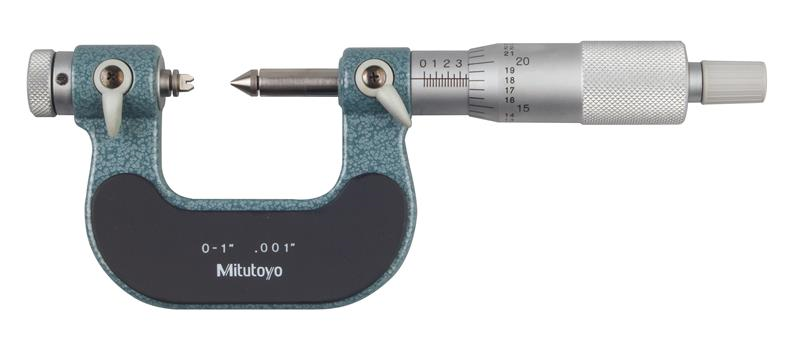

0-1 Inch Measuring Range, Ratchet Thimble, High Speed Steel Face, Interchangeable Anvil Thread Micrometer

  • Item Code: 126-901
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Comes with Anvil-Spindle tip set with 60 degree threads.
    • Suppled in a fitted plastic case.
    • Has a Ratchet Stop for constant measuring force.

Tech Specs

Back To Top
Spindle Face Variable
Accuracy ±.0002 In
Case Material Plastic Case
Primary Measuring Range Upper - Inch 1 In
Finish Enamel
Spindle Lock Y
Pieces Per Set 7
Resolution or Graduation .001 In
Case Part Number 453217
Thimble Diameter Measurement 18mm
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 0 In
Brand Mitutoyo
Mechanical or Digital Mechanical
Individual or Set Set
Primary (Outside Diameter) Contact Point Material Hardened Steel
Range 0 - 1 In
